PRODUCT PORTFOLIO
Silene™
A covered peripheral stent platform developed for demanding vascular intervention environments.
CLINICAL POSITIONING
Purpose-built vascular technology.
Product availability and regulatory status vary by market. Information presented here is a portfolio overview and not medical advice or instructions for use.
CLINICAL EXPERIENCE
Silene Case Studies
Explore Silene™ clinical experiences, with procedural insights, original imaging and reported outcomes.

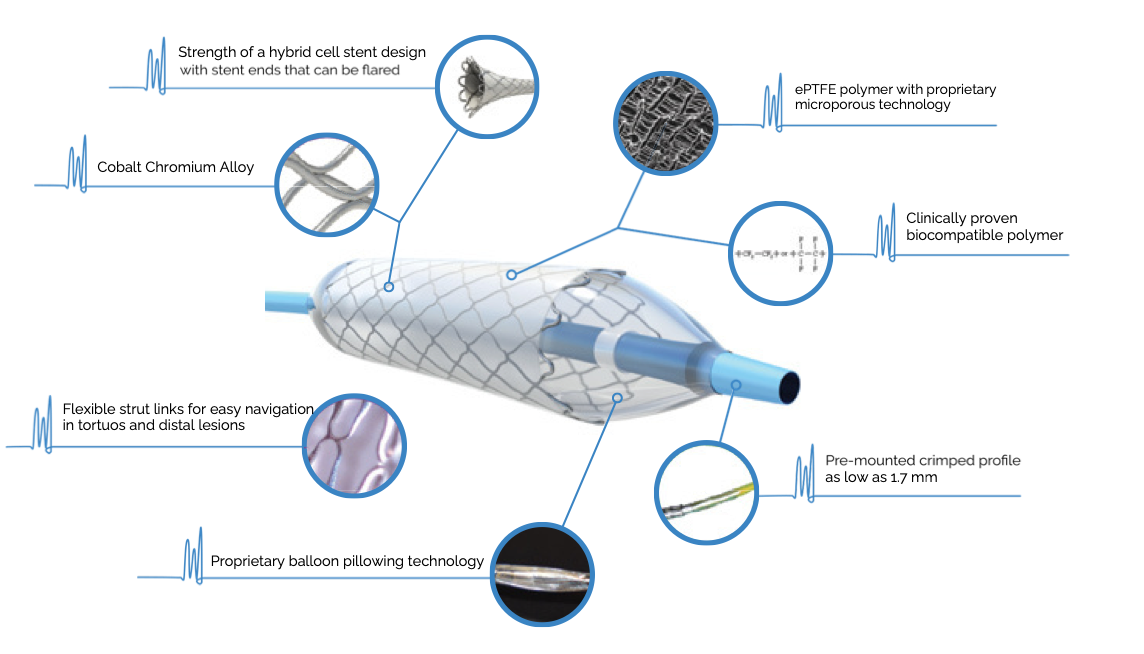

DESIGN & PERFORMANCE
An ideal device for emergency use situations.
- Optimal trackability and deliverability in the tortuous anatomy
- Excellent flexibility and superior navigability in challenging lesions
- ePTFE polymer with proprietary micro-porous technology
- Mono layer graft stent with a U.S. Patented intravascular hybrid open-closed cell design
- Proprietary delivery catheter balloon pillowing technology
- Superior vessel conformance
- Optimum radial strength
- Lowest pre-mounted crimped profile
PRODUCT INFORMATION
Technical Data
| Specification | Description |
|---|---|
| Stent Design | Direct-Stent® - Patented Hybrid Cell Design |
| Stent Material | L605 Cobalt Chromium Alloy |
| Stent Covering Polymer | ePTFE Microporous Polymer, IND 90 - 120 μm |
| Wall Thickness | 0.08 mm/0.003" |
| Balloon System | Over the Wire (OTW) |
| Balloon Material | Semi-Compliant - Nylon Blend |
| Optimal Deployment Pressure | 9 ATM |
| **Nominal Pressure | 7 ATM |
| Rated Burst Pressure | 10 ATM |
| Shaft Size | 5/6F |
| *Minimum Sheath Size | Ø6 - 7 mm: 6Fr; Ø8 - 9 mm: 8Fr; Ø10 - 12 mm: 9Fr |
| Pre-mounted Profile | 1.7 - 3.0 mm |
| Tip Entry Profile | 0.039" |
| Recommended Guidewire | 0.035" |
| Delivery Catheter Length | ~ 130 cm |
| Stent Length | 14 - 70 mm |
| Stent Ends Flaring | 6, 7 → 9 mm; 8, 9, 10 → 14 mm; 12 → 16 mm |
| Radial Force | 10 - 9 mm | 2.0 N Force |
* See individual manufacturer for Sheath Size Fr equivalent.
** Assure full deployment of stent. Deployment pressures should be based on lesion characteristics.
Technical data should be read with the applicable approved Instructions for Use. Specifications and availability may vary by market.
CONFIGURATIONS
Ordering Information
| Stent Diameter (mm) | Stent Length (mm) | Ordering Number |
|---|---|---|
| 6.0 | 15, 25, 35, 50, 70 | 7560XX |
| 7.0 | 15, 25, 35, 50, 70 | 7570XX |
| 8.0 | 15, 24, 32, 50, 70 | 7580XX |
| 9.0 | 15, 24, 32, 50, 70 | 7590XX |
| 10.0 | 15, 23, 31, 48, 65 | 75100XX |
| 12.0 | 14, 23, 31, 48, 65 | 75120XX |
XX denotes the selected length, including a leading zero where shown. Example: 6.0 mm diameter × 15 mm length: 756015.
Confirm configurations and ordering information against the current approved product documentation.
